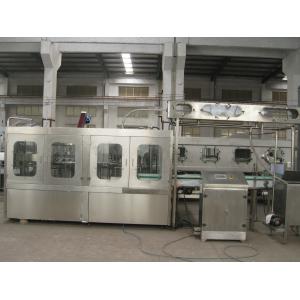

Complete Small Water Bottle filling machine With PLC Automatic Control 15000 BPH

Description:

1. The equipment is used in production of bottled non-carbonated drink of mineral water and pure water.

2. Rinsing, filling and capping are integrated in one machine.

3. The liquid filling technology of gravity which learned from latest technology from Germany is used in the design.

4. The filling is fast.

5. The fluid control is stability.

6. There is non-drip phenomenon.

7. Spring cramps are used in the bottle rinsing process. The empty bottles can be turned over 180° Along the conveying rail.

8. Rinsing the bottles inside and outside. The efficiency of bottle rinsing is high.

9. The magnetic torque is used for screw capping. The power of screw capping can also be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged. The capping is reliable.

10. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. The machine will be stopped automatically. When bottles are cramped wrongly or when caps are not available.

Quick Detail:

Specifications:

• High capacity filling machine all adopt griper for bottle transportation. griper is better than star wheel for high speed rotary running. guard board is not necessary because of steay holding by griper. there is few bottle size changing parts needed during changing bottle size.

• New type of filling valve with high volume filling double than former filling valve. there is oil-less bearing from Germen Igus ensures steady filling action. there is sensor for checking bottle position and counting capacity showed on touch screen.

• the strength of capping head is adjustable. we shall adjust the strength to be best for client's cap and bottle during our whole line testing in our workshop. there is nylon size changing part for different bottle size. this is the only part you need to change with different bottle size.

Applications:
1. Bottled mineral water production.
2. Bottled purified water production.
3. PET bottled water package.
4. PET bottle oil package is also avaliable.

Suzhou Mingstar Co.,Ltd is a professional company focus on filling machine and packing machine business. Suzhou Mingstar will be responsible with exporting and logistic business. there is professional factory StepChina Machinery which focus on desigining and manufacture.

Founded in 2006, Suzhou StepChina Machinery Co.,Ltd, is a leading manufacturer and supplier of beverage filling line, filling machine in China, with the registered capital of 5 million RMB. We are committed to improving the standard of our products to fulfill the growing various solution for packaging and drink industry over the past few years.

Here in Stepchina, we mainly offer bottled beverage production lines and other related machines as follows:

1. The water filling line which can harvest mineral or pure water both in bottled or barrel packed. There are CGF bottled water filling production line for 200ml-2500ml and TXG barrel water filling line for 3~5 gallon.Those lines are suitable for producing potable drinking water for you.

2. The juice production line which can harvest potable drinking beverage from apple, sour cherry, pomegranate and orange grape, pineapple, tomato, mango and blends etc. This line is suitable for PET bottled juice within the volume from 200ml to 2500ml.

3. The carbonated drink production line is used to produce carbonated drink or spark drink like Coca Cola, Sprite, Pepsi Cola and other soft drink with the capacity from 200ml to 2500ml and with production capacity varies from 6000-30000B/H.
